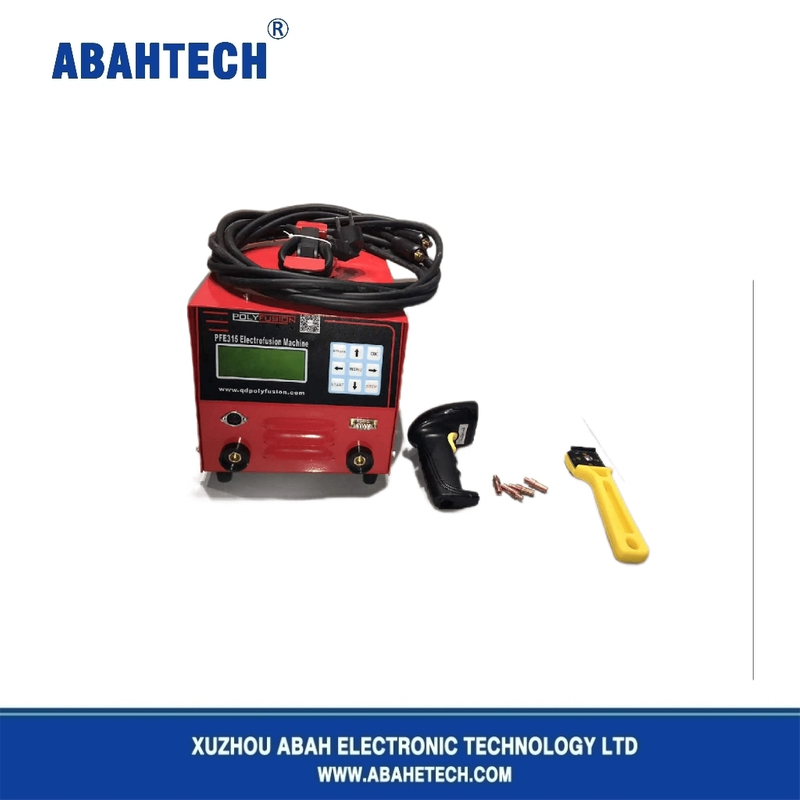

High-level MCU is used as control core, with abundantparameter setting, measuring and perfect protectivefunction
Wide power supply and voltage input, suitable for fieldelectrical network level
High precision control of electrical stability and timensuring weiding quality.
Swift output response time when power supply breakshigh stability
Many programmabie welding functions, suitable forwelding requirement for various fittings
Flexible welding parameter input mode, manual inputthrough keyboard or bar code scanning input.
Model | PFE200 | PFE315 | PFE500 | PFE630 | PFE1200 | ||||
Welding Range(mm) | DN20-200mm | DN20-315mm | DN20-500mm | DN20-630mm | DN20-1200mm | ||||
Input Voltage | AC220±20% | AC380±20% | |||||||
Output Power | 2.5KW | 3.5KW | 5.0KW | 5.5KW | 10.0KW | ||||
Output Voltage | 45V | 60V | 90V | 110V | 210V | ||||
Dimension(mm) | 400*250*310 | 400*250*310 | 500*270*350 | 500*270*350 | 540*370*430 | ||||
Data Record Quantities | 300 | 300 | 300 | 100 | 100 | ||||
Working Time | It can work 24 hours constantly | ||||||||
Working Model | Contant Voltage Constant Current | ||||||||
Weight | 5.0KG | 5.0KG | 9.5KG | 10KG | 19KG | ||||
